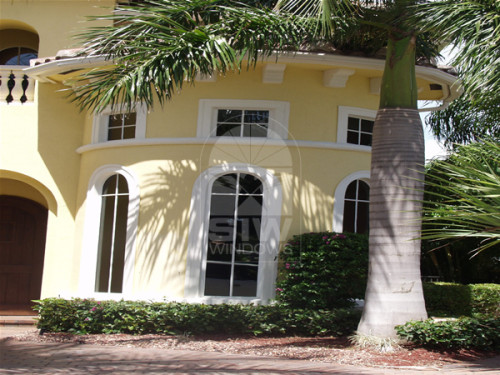

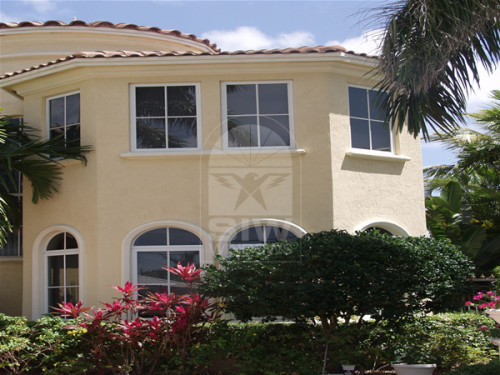

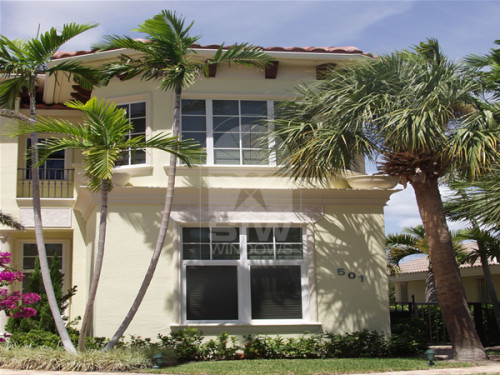

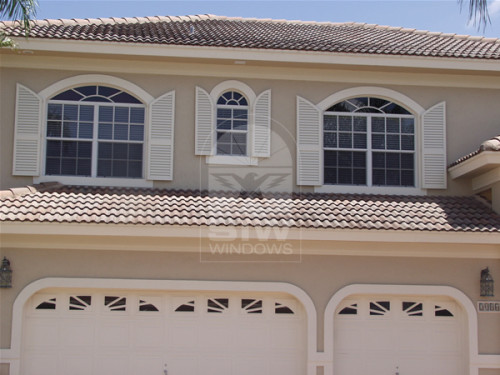

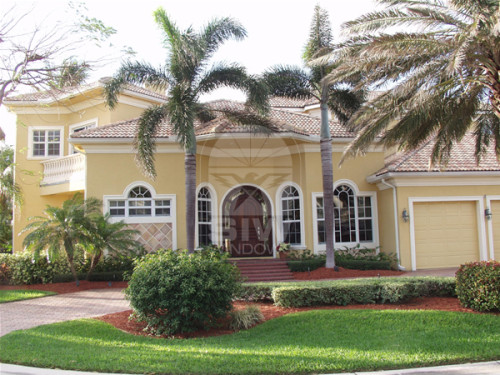

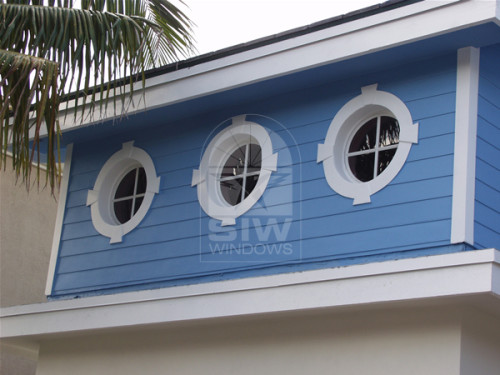

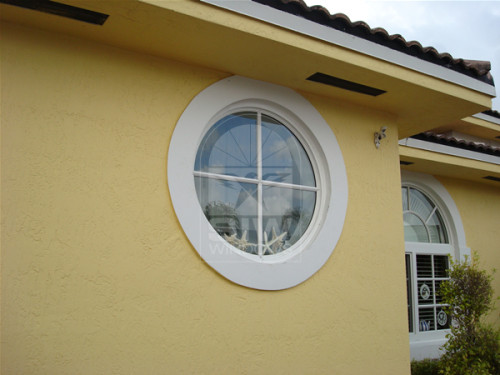

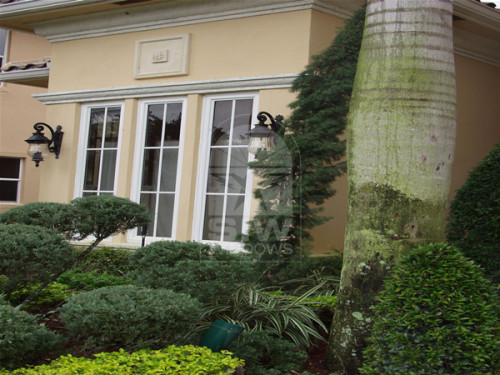

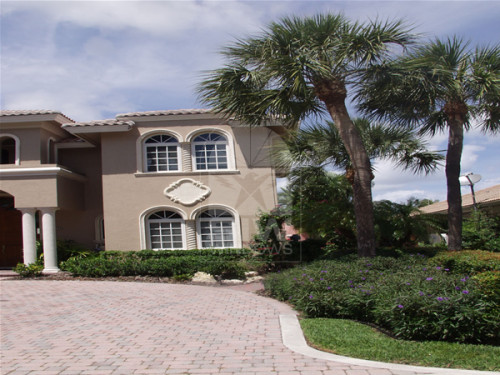

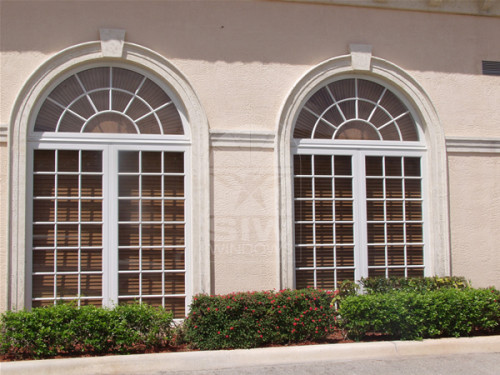

Fixed & Architectural

Material & Construction

Frames

Maxiumim Size 53 1/8 X 96 (+90 – 130) See NOA for more information Heavy-duty extruded aluminum is painted with a electrostatic paint for a low maintenance Frame depth is 3″ for windows Nominal wall thickness is .078 for all windows. Installation holes are pre-punched for easy installation Flange frame can be mulled with single hung or horizontal roller

Glazing

Multiple galzing options are available to meet various design requirements All products are wet glazed to greater strength and seal All products have a structural extruded aluminum glazing bead for stronger resistance to wind loads

Weather Stripping

Fully weatherstripped throughout with fin seal and vinyl bulb to reduce air and water infiltration

Available Options

Double applied colonial muntins Mull bars and mull clips
